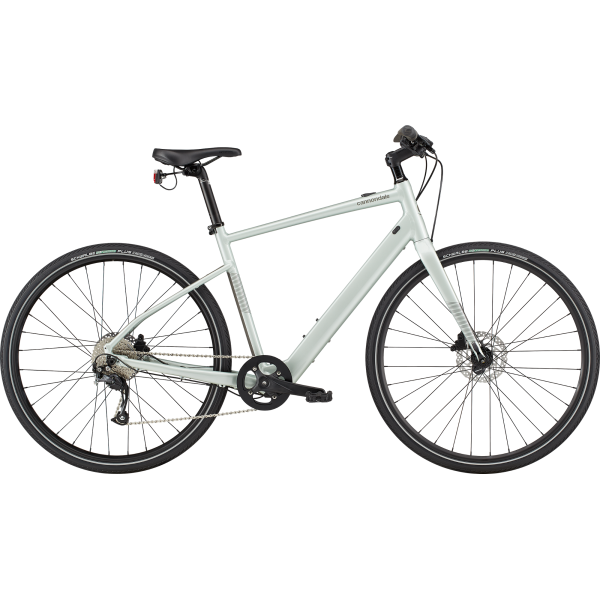

CANNONDALE QUICK NEO 2

DETAILS

• Platform

  Quick Neo SL
• Model Name

  Quick Neo SL 2
• Model Code

  C63400M

FRAMESET

• Frame

  SmartForm C3 alloy, internal battery, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity
• Fork

  Full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts, 360° reflectivity
• Headset

  FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8"

E-SYSTEM

• Drive Unit

  Mahle ebikemotion X35 250W
• Battery

  Mahle ebikemotion X35 250Wh
• Charger

  Mahle ebikemotion X35
• Display

  Mahle ebikemotion iWoc ONE integrated controller, smartphone app with Intellimount stem

DRIVETRAIN

• Rear Derailleur

  Shimano Altus
• Shifters

  Shimano Altus, 9-speed
• Chain

  KMC E9T, 9-speed
• Crank

  Prowheel, 38T
• Rear Cogs

  Shimano HG201, 11-36, 9-speed
• Bottom Bracket

  Cartridge, square taper

BRAKES

• Brakes

  Shimano UR300 hydraulic disc, 160/160mm RT56 rotors
• Brake Levers

  Shimano MT201 hydraulic disc

WHEELS

• Rims

  Shining, 32 hole
• Front Hub

  Formula CRX-512, 12x100mm thru-axle
• Rear Hub

  MAHLE ebikemotion X35 250W
• Spokes

  (F) Stainless Steel, 14g / (R) 13g
• Tires

  Schwalbe Energizer Plus, 700 x 38c, Green Guard, Addix-E compound
• Tire Size

  38
• Wheel Size

  700c

COMPONENTS

• Handlebar

  Cannondale Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 680mm
• Stem

  Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
• Grips

  Cannondale Ergo Fitness Dual Density, Lock-on
• Saddle

  Cannondale Fitness Ergo Double Density
• Seatpost

  6061 Alloy, 31.6 x 350mm

CONNECTIVITY

• Wheel Sensor

  Cannondale Wheel Sensor

EXTRA

• Extra 1

  Herrmans H-Trace rear light
